Rate Limiting Design: A 2026 Developer’s Guide
Rate limiting design is the practice of controlling how frequently clients can call an API or service, using algorithms and distributed system patterns to prevent abuse and protect performance. The two most production-proven defaults are the token bucket and the sliding window counter. The token bucket allows burst traffic up to a defined capacity, making it the industry default for user-facing APIs. The sliding window counter delivers near-exact accuracy with minimal memory overhead. Both algorithms integrate with HTTP 429 responses and Retry-After headers per RFC 6585, and they rely on atomic operations in Redis to stay correct under concurrent load.
1. Rate limiting design: choosing the right algorithm
The algorithm you pick determines accuracy, memory cost, burst behavior, and operational complexity. No single algorithm wins every scenario. Matching the algorithm to your workload is the first decision in any throttling strategy.
Token bucket
The token bucket is the safe default for interactive APIs. Tokens refill at a fixed rate, and clients can spend accumulated tokens in short bursts. Storing two values per client, the current token count and the last refill timestamp, keeps memory cost low. A user who sends 10 requests in one second after a quiet period gets served without a 429, which is the right behavior for human-driven traffic.
Sliding window counter
The sliding window counter is the production default for high-volume APIs. Cloudflare reports an error rate of 0.003% across 400 million requests using this algorithm. That near-zero error rate makes it the right choice when fairness and accuracy matter more than burst tolerance.
Fixed window counter
The fixed window counter is the simplest algorithm to implement. It counts requests inside a fixed time bucket, such as one minute, and resets at the boundary. The flaw is boundary bursting: a client can send the full limit at the end of one window and the full limit again at the start of the next, doubling effective throughput. Use fixed window only for rough, low-stakes limits where boundary bursting carries no real risk.
Leaky bucket
The leaky bucket processes requests at a fixed output rate, queuing or dropping excess traffic. It protects downstream systems from spikes by smoothing the request flow. The trade-off is added latency for queued requests and complexity in queue management. Use it when you need to shield a slow backend from bursty upstream traffic.
Sliding window log
The sliding window log stores a timestamp for every request in the current window. It produces exact counts with zero boundary artifacts. The cost is high memory: at 1,000 requests per window per client, you store 1,000 timestamps. Reserve this algorithm for low-volume, security-critical endpoints like login or password reset, where exactness justifies the memory price.
| Algorithm | Burst tolerance | Memory cost | Accuracy | Best use case |
|---|---|---|---|---|
| Token bucket | High | Low | Good | User-facing interactive APIs |
| Sliding window counter | Medium | Low | Near-exact | High-volume production APIs |
| Fixed window counter | High at boundary | Very low | Rough | Internal or low-stakes limits |
| Leaky bucket | None | Medium | Exact output rate | Downstream protection |
| Sliding window log | None | High | Exact | Security endpoints, low volume |
Pro Tip: Start with token bucket for any new API. Add sliding window counter as a secondary layer on endpoints where fairness between clients matters. Avoid sliding window log unless you have a specific security requirement and low request volume.
2. Distributed architectures for high-scale API request limiting
Distributed rate limiting requires a shared counter store that all gateway nodes can read and write atomically. Without a central store, each node tracks its own counters and clients can exceed limits by routing requests across nodes.
Redis is the standard central store for distributed rate limiting. Lua scripts run atomically on Redis with typical latency around 0.1–0.5 ms per operation. Atomic execution prevents race conditions where two concurrent requests both read a counter below the limit and both get approved, even though only one should pass.
At very high request rates, round-tripping to Redis for every request becomes a bottleneck. Local token leasing solves this. Each gateway pod pre-leases a batch of tokens from Redis and serves requests from its local cache until the batch runs out. Local cache hits absorb 80% of requests, reducing Redis QPS fivefold at 50,000 RPS. That reduction in Redis traffic directly lowers latency and infrastructure cost.
Hot keys are a separate problem. When one client generates extreme traffic, all requests for that client hash to the same Redis key, creating a bottleneck. Sharding the key across multiple Redis slots and aggregating counts at read time distributes the load. A fallback strategy, such as local approximate counting during a Redis shard failure, prevents a single hot key from taking down the rate limiter.
Pro Tip: Test your rate limiter under simulated Redis failure before you go to production. Configure explicit alerts for Redis latency spikes and 429 rejection rate changes. A rate limiter that silently fails is worse than one that fails loudly.
A two-tier rate limiter with local token leasing and a central Redis store balances scale, latency, and accuracy better than either approach alone. This architecture is the production standard for APIs handling tens of thousands of requests per second.
3. HTTP headers and client-side throttling strategies
Clear communication between server and client is a core part of any API rate limiting strategy. When clients know their current limit, remaining quota, and reset time, they can throttle themselves before hitting a 429.
The HTTP 429 Too Many Requests status code is the correct response for a rate-limited request, per RFC 6585. The Retry-After header tells the client exactly how long to wait before retrying. Non-jittered retries double traffic when many clients hit a limit simultaneously and all retry at the same moment. Exponential backoff with full jitter spreads retry attempts across time and prevents the retry storm from overwhelming the server.
The IETF draft standard draft-ietf-httpapi-ratelimit-headers-11 defines three headers for communicating limit state:
- RateLimit-Limit: the maximum requests allowed in the current window
- RateLimit-Remaining: the requests left in the current window
- RateLimit-Reset: the time when the window resets, in seconds or as a timestamp
Cloudflare adopted the new standard in 2025. GitHub and Stripe still use vendor-prefixed X-RateLimit-* headers. The two formats carry the same information but differ in field names, which means clients need to handle both during the transition period.
Standardized RateLimit headers are not just a convenience for clients. They are the foundation of client-side throttling, observability dashboards, and SDK auto-retry logic. Without them, clients guess, and guessing leads to retry storms.
Emit all three standard headers on every response, not just on 429s. Clients that see their remaining quota dropping can back off proactively, which reduces your 429 rate and improves the experience for all clients on the same limit tier.
4. Strategic trade-offs in rate limiting design
Good throttling strategy goes beyond algorithm selection. The decisions you make about policy configuration, burst capacity, and failure behavior determine whether your rate limiter protects the system or creates new problems.
Separate rate limits from billing quotas
Rate limits and billing quotas serve different objectives and must be treated as separate systems. Rate limits manage real-time abuse with short reset windows, typically seconds or minutes. Billing quotas manage monthly usage for pricing tiers, with reset windows measured in days or months. Conflating the two leads to situations where a client gets blocked on a billing quota mid-request, which looks like a rate limit error to the client and creates support confusion.
Configure burst capacity deliberately
Burst capacity is the number of requests a client can send above the sustained rate before getting throttled. Set it too low and you frustrate legitimate users who send short bursts of activity. Set it too high and you give abusive clients room to cause damage before the limiter kicks in. A common starting point is to set burst capacity at two to three times the sustained per-second rate, then adjust based on observed traffic patterns.
Fail-open vs. fail-closed
Fail-open is recommended for fairness rules on low-risk endpoints. Fail-closed is required for security-sensitive endpoints like login and password reset. The distinction matters because a Redis outage affects all endpoints simultaneously. Failing open on a search endpoint preserves availability. Failing open on a login endpoint lets attackers brute-force credentials during your outage window.
| Scenario | Fail-open | Fail-closed |
|---|---|---|
| Redis outage on search API | Allow traffic, preserve availability | Block traffic, risk user impact |
| Redis outage on login endpoint | Risk brute-force attacks | Block traffic, prevent abuse |
| Redis outage on billing API | Allow traffic with monitoring | Depends on fraud risk |
| Recommended default | Low-risk, high-availability endpoints | Security-sensitive endpoints |
Monitoring 429 rejection spikes is the operational signal that tells you whether your limits are calibrated correctly. A sudden spike in 429s on a previously quiet endpoint indicates either an abusive client or a misconfigured limit. Both require immediate investigation. Build dashboards and alerts around rejection rates before you deploy rate limiting to production.
Key takeaways
Effective rate limiting design requires pairing the right algorithm with a distributed architecture, clear HTTP headers, and explicit fail-mode decisions per endpoint.
| Point | Details |
|---|---|
| Algorithm selection matters | Token bucket suits interactive APIs; sliding window counter suits high-volume fairness enforcement. |
| Atomic Redis operations are required | Lua scripts on Redis prevent race conditions and keep counter accuracy at scale. |
| Separate limits from quotas | Rate limits reset in seconds or minutes; billing quotas reset monthly. Mixing them creates operational confusion. |
| Fail-mode must be explicit | Configure fail-open for low-risk endpoints and fail-closed for login and security-sensitive routes. |
| Standard headers enable client throttling | Emit RateLimit-Limit, RateLimit-Remaining, and RateLimit-Reset on every response, not just on 429s. |
What I’ve learned from implementing rate limiting at scale
The most common mistake I see is treating rate limiting as a single system-wide policy. Teams pick one algorithm, set one limit, and ship it. Then they wonder why their login endpoint gets hammered during a Redis blip or why their search API throws 429s at legitimate users during a traffic spike.
My recommendation: use token bucket as your default and layer sliding window counter on endpoints where fairness between clients matters. Never use an in-memory distributed counter across pods without a central store. The math looks right in testing and falls apart in production when pods restart at different times.
The fail-open vs. fail-closed decision is the one I see teams skip most often. They leave it as an implicit default in their rate limiting library, which is almost always fail-open. That default is wrong for login, password reset, and any endpoint that touches authentication. Write the fail-mode decision into your API design document and make it explicit in your configuration. Future engineers will thank you when they are debugging a 3:00 AM Redis incident.
Observability is not optional. If you cannot see your 429 rate per endpoint in real time, you are flying blind. Set up alerts for rejection rate changes above a threshold you define before launch. Adaptive concurrency control approaches, like Netflix’s Vegas-style algorithm, adjust limits based on observed latency and load, which prevents self-inflicted retry storms. They are worth studying even if you do not implement them immediately.
— Zerak

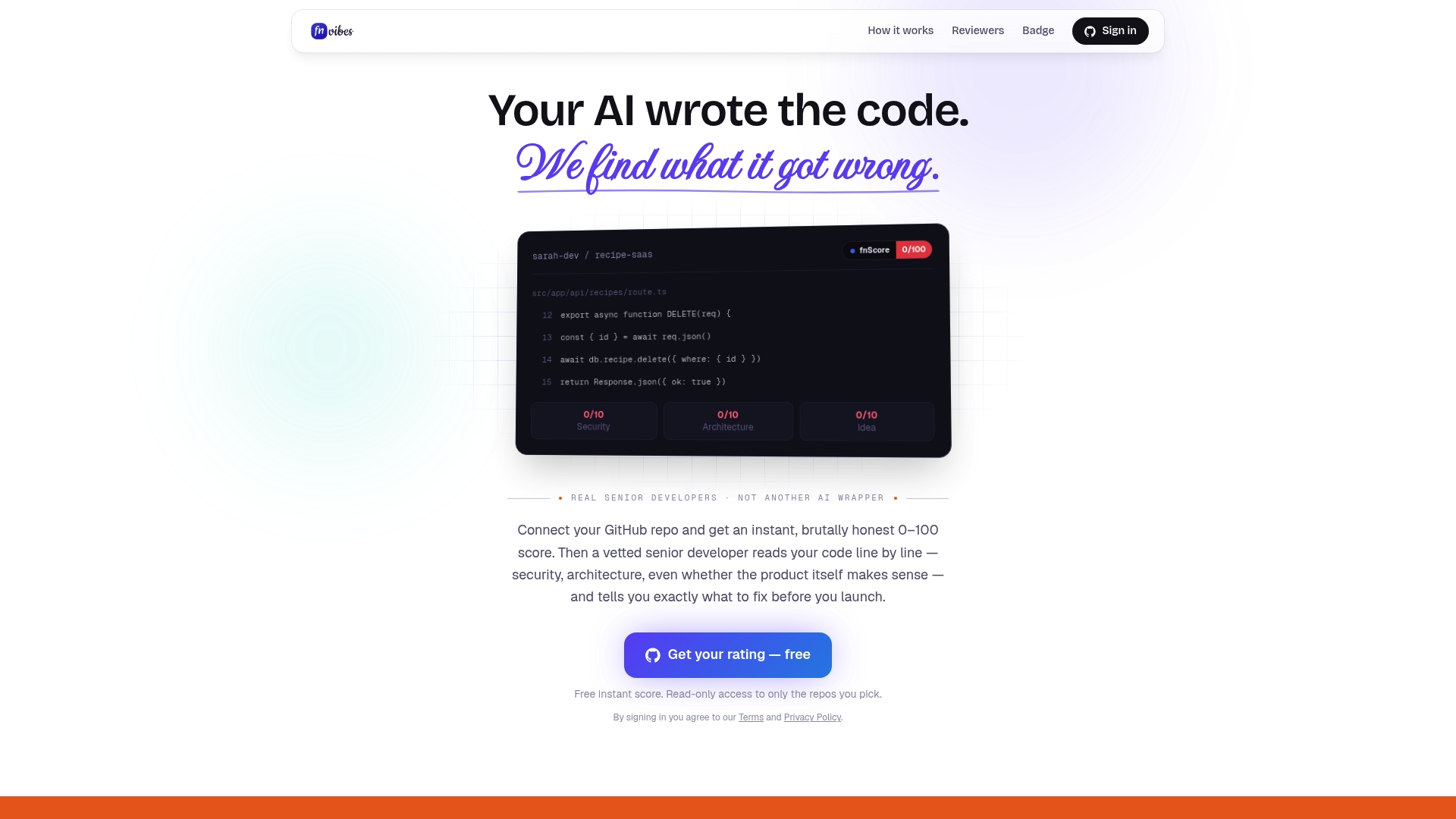

How Fnvibes helps you build APIs that hold up
Rate limiting is one of the design patterns that separates a production-ready API from one that fails under real traffic. Getting the algorithm, architecture, and fail-mode decisions right requires a senior engineering perspective that many teams do not have in-house.
Fnvibes connects you with experienced senior reviewers who analyze your GitHub repository and identify the gaps that automated tools miss: missing atomic operations, incorrect fail-mode configurations, and retry logic that creates storms instead of preventing them. The review process covers security, performance, and structural correctness, giving you a scored assessment you can act on before launch. If you are building or auditing an API and want a senior perspective on your rate limiting implementation, Fnvibes is the place to start.
FAQ
What is the best algorithm for API rate limiting?
The token bucket algorithm is the industry default for user-facing APIs because it tolerates short bursts while enforcing a sustained rate. The sliding window counter is the best choice when fairness and near-exact accuracy matter more than burst tolerance.
How does Redis improve rate limiting accuracy?
Redis executes Lua scripts atomically, preventing race conditions where concurrent requests both read a counter below the limit and both get approved. Typical Lua script latency on Redis is 0.1–0.5 ms per operation.
What HTTP status code should a rate-limited response return?
A rate-limited response must return HTTP 429 Too Many Requests, per RFC 6585. The response should include a Retry-After header and the standard RateLimit headers defined in IETF draft draft-ietf-httpapi-ratelimit-headers-11.
What is the difference between a rate limit and a billing quota?
Rate limits control real-time request frequency and reset in seconds or minutes. Billing quotas track total usage against a pricing tier and reset monthly. Treating them as the same system causes operational and client-facing confusion.
When should a rate limiter fail open vs. fail closed?
Fail open on low-risk endpoints like search or read APIs to preserve availability during a Redis outage. Fail closed on security-sensitive endpoints like login and password reset to prevent abuse during downtime.
